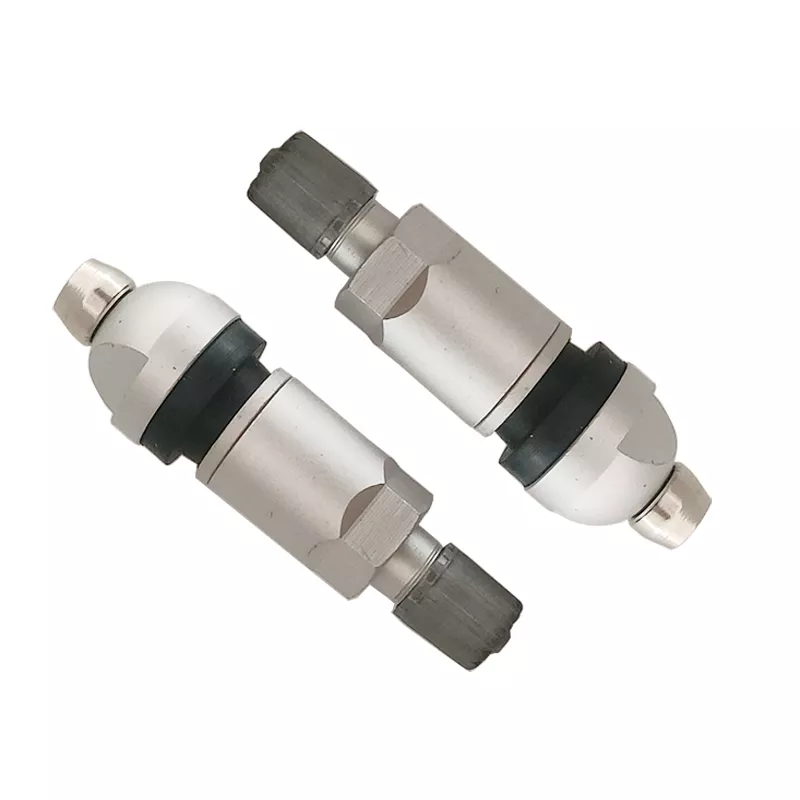

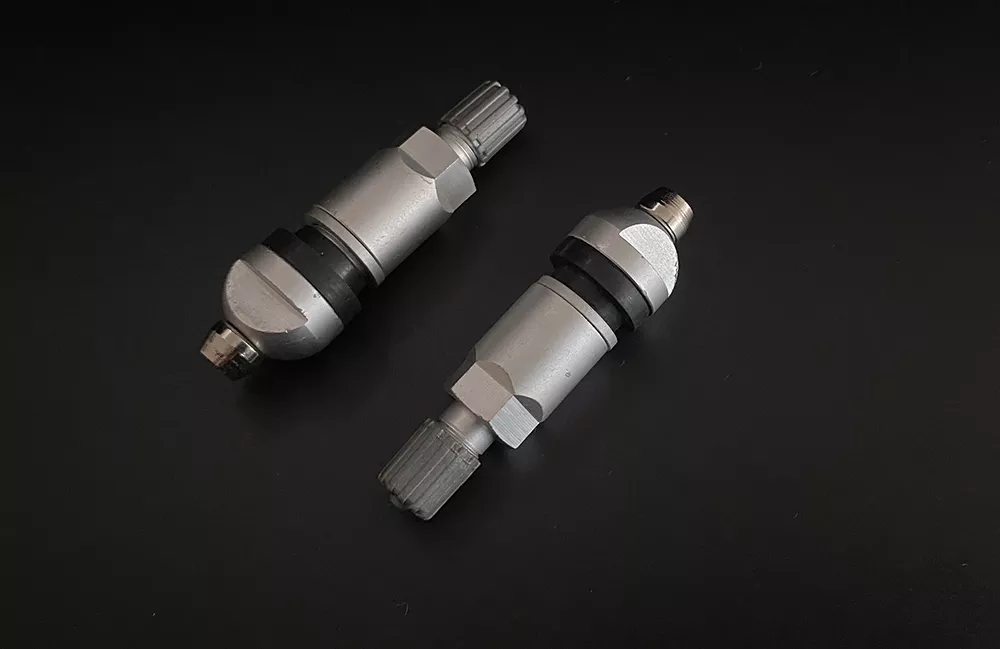

TPMS Valve 12 – M5 Thread Bottom TPMS Valve Stem for Audi, Volkswagen, Porsche and Acura
TPMS Valve 12 is a professional TPMS valve stem designed with an M5 threaded bottom structure for secure sensor installation, reliable sealing, and accurate tire pressure monitoring performance.
The M5 thread design provides a strong and stable connection between the TPMS valve stem and compatible tire pressure monitoring sensors. With excellent mechanical strength and precise manufacturing, TPMS Valve 12 is suitable for modern passenger vehicles and aftermarket TPMS installation applications.
TPMS Valve 12 is widely used for vehicles including Audi, Volkswagen (VW), Porsche, and Acura, making it an ideal replacement component for automotive repair shops, TPMS service centers, and vehicle modification markets.
M5 Thread Bottom DesignTPMS Valve 12 features an M5 threaded bottom connection design, providing secure installation and reliable fastening with compatible TPMS sensors.
High Compatibility with Premium Vehicle BrandsTPMS Valve 12 is designed for use with various high-end and performance vehicle applications.
Reliable Tire Pressure Monitoring PerformanceA high-quality TPMS valve stem plays an important role in maintaining accurate tire pressure monitoring.
Technical Product Data
Model
TPMS Valve 12
Type
TPMS Valve Stem
Bottom Structure
M5 Thread
Application
Tire Pressure Monitoring System
Vehicle Type
Passenger Cars
Compatible Brands
Audi, Volkswagen, Porsche, Acura
Safe and stable, high driving reliability
TPMS Valve 12 is widely used for vehicles including Audi, Volkswagen (VW), Porsche, and Acura, making it an ideal replacement component for automotive repair shops, TPMS service centers, and vehicle modification markets.
Improves mounting stability
Ensures consistent sensor positioning
Enhances sealing reliability
Ideal for passenger cars and SUVs
Universal adaptation, extremely compatible
Standard 11.5mm (0.453 inch) wheel hub hole
Original steel rims and ordinary alloy wheels are universal, and 95% of household car vacuum tires and wheels on the market can be directly replaced. They are standard parts for automotive repair.
Suitable for wheel hub thickness of 1.8-4mm
Full coverage of mainstream wheels for household cars; The maximum pressure capacity is 65 PSI (4.5 bar), fully meeting the standard tire pressure requirements for sedans/SUVs, and suitable for high-speed driving up to 210 km/h.
Effective length 38mm (1.5 inches)
Compared with shorter tire valves, the TR414 provides greater accessibility during tire inflation. Its longer stem design makes it easier to connect air chucks and pressure gauges, especially on alloy wheels with recessed valve openings.
The premium rubber effectively resists cracking caused by ozone, sunlight, heat, and harsh weather conditions, while the brass stem ensures excellent corrosion resistance and long-term durability.
Advantages of TPMS Valve 12
Secure M5 Thread Connection
The precision M5 thread design ensures a firm connection between the valve stem and TPMS sensor, improving installation reliability.
Excellent Air Sealing Performance
TPMS Valve 12 is manufactured with precise dimensions to provide dependable sealing performance and help maintain correct tire pressure.
Suitable for Premium Vehicles
Designed for applications requiring high accuracy and reliability, TPMS Valve 12 is widely used in European and luxury vehicle TPMS systems.
Easy Replacement and Installation
Professional technicians can quickly replace existing TPMS valve components, reducing installation time and improving service efficiency.
Applications of TPMS Valve 12
TPMS Valve 12 is commonly applied in:
European Vehicle Applications
Audi
Volkswagen
Porsche
Asian Vehicle Applications
Acura
Aftermarket Applications
TPMS sensor replacement
Vehicle TPMS upgrades
Automotive modification projects
Tire service maintenance
The TPMS Valve 11 tire valve is suitable for
Durable Alloy Construction
The alloy body provides better strength and durability compared with traditional rubber valve stems, making it suitable for repeated vehicle operation.
Stable TPMS Sensor Connection
The special 90-degree right angle structure changes the direction of the valve outlet
Complete Valve Protection
The included metal cap protects the valve core from external contamination and extends the service life of the valve assembly.
Suitable for Vehicle Service and Aftermarket Supply
AutomobilesCarsTrucksSUVsMotorcyclesTire Repair WorkshopsAuto Service CentersWheel Balancing ApplicationsAutomotive Aftermarket Distribution
Installation precautions
Each replacement must use a brand new sealing gasket, and it is forbidden to reuse the old gasket to cause air leakage.
The thread locking force is moderate to avoid excessive force causing thread slippage or damage to the sensor base.
During installation, keep the flat surface parallel to the inner wall of the tire to prevent tilting and rubbing against the tire, which may cause safety hazards.
How to replace the tire valve
01Dismantle the old tire valve
After peeling off the tire, push out the aged and damaged old tire valve from the inside of the wheel hub, and clean the rust and burrs in the wheel hub holes.
02Install a new tire valve
Apply water-based lubricant to the root of the new tire valve, insert it from the outside of the wheel hub, and use a pulling tool to tighten and fix it in place with the wheel hub.
03Leak detection completed
Inflate to standard tire pressure, apply soapy water to the root of the tire valve and check for no bubbles or leaks. Assemble the tire and perform dynamic balancing.
Tip: When replacing the valve, it is necessary to perform dynamic balancing.
Frequently Asked Questions
What is TPMS Valve 12?
TPMS Valve 12 is an M5 threaded TPMS valve stem designed for connecting tire pressure monitoring sensors with vehicle wheels.
What vehicles use TPMS Valve 12?
TPMS Valve 11 uses a special 180° straight bottom cut structure, which improves sensor positioning accuracy and installation stability.
What is the advantage of the M5 thread design?
TPMS Valve 12 is suitable for vehicles including Audi, Volkswagen, Porsche, and Acura, as well as aftermarket TPMS installation applications.
Can TPMS Valve 12 be used for aftermarket TPMS modification?
Yes. TPMS Valve 12 is widely used for aftermarket TPMS upgrades, sensor replacement, and professional automotive maintenance.
