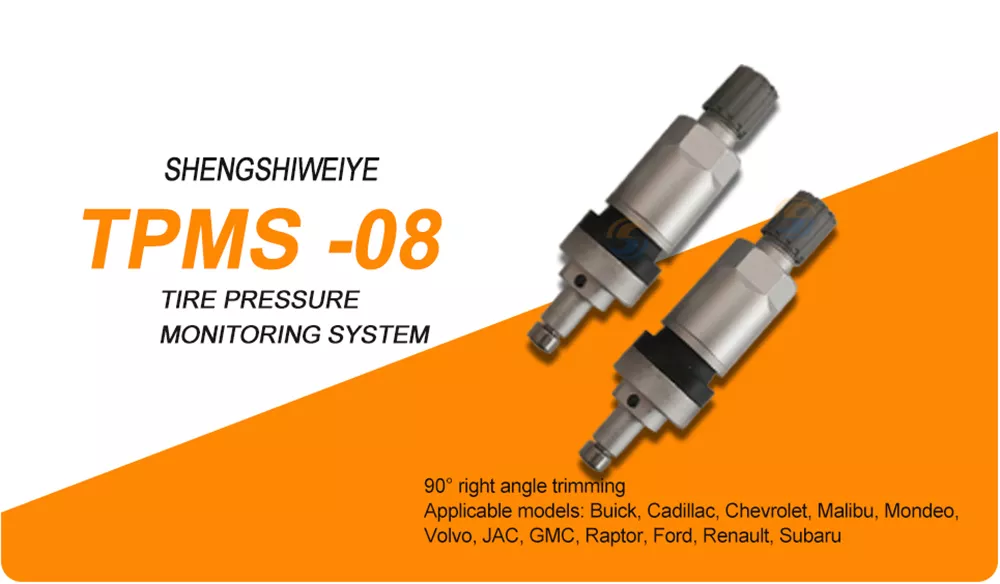

TPMS Valve 08 – 90° Right Angle Trimming TPMS Valve Stem for OEM Vehicle Applications
TPMS Valve 08 is a high-quality 90° right angle trimming TPMS valve stem designed for vehicles equipped with tire pressure monitoring systems. With its angled valve design and trimming positioning structure, this TPMS valve provides easier installation, improved wheel clearance, and stable sealing performance.
The 90-degree right angle design allows the valve stem to fit wheels with limited installation space, making it especially suitable for modern passenger cars, SUVs, and vehicles using compact wheel designs. The trimming structure improves positioning accuracy and helps prevent valve rotation after installation.
TPMS Valve 08 is widely used as an OEM replacement TPMS valve for vehicle brands including Buick, Cadillac, Chevrolet, Volvo, Ford, Renault, Subaru, GMC, and Mercedes-related applications, providing a reliable solution for tire service professionals and automotive aftermarket distributors.
90° Right Angle Design for Flexible InstallationThe special 90-degree right angle structure changes the direction of the valve outlet, providing better accessibility during tire inflation and maintenance.

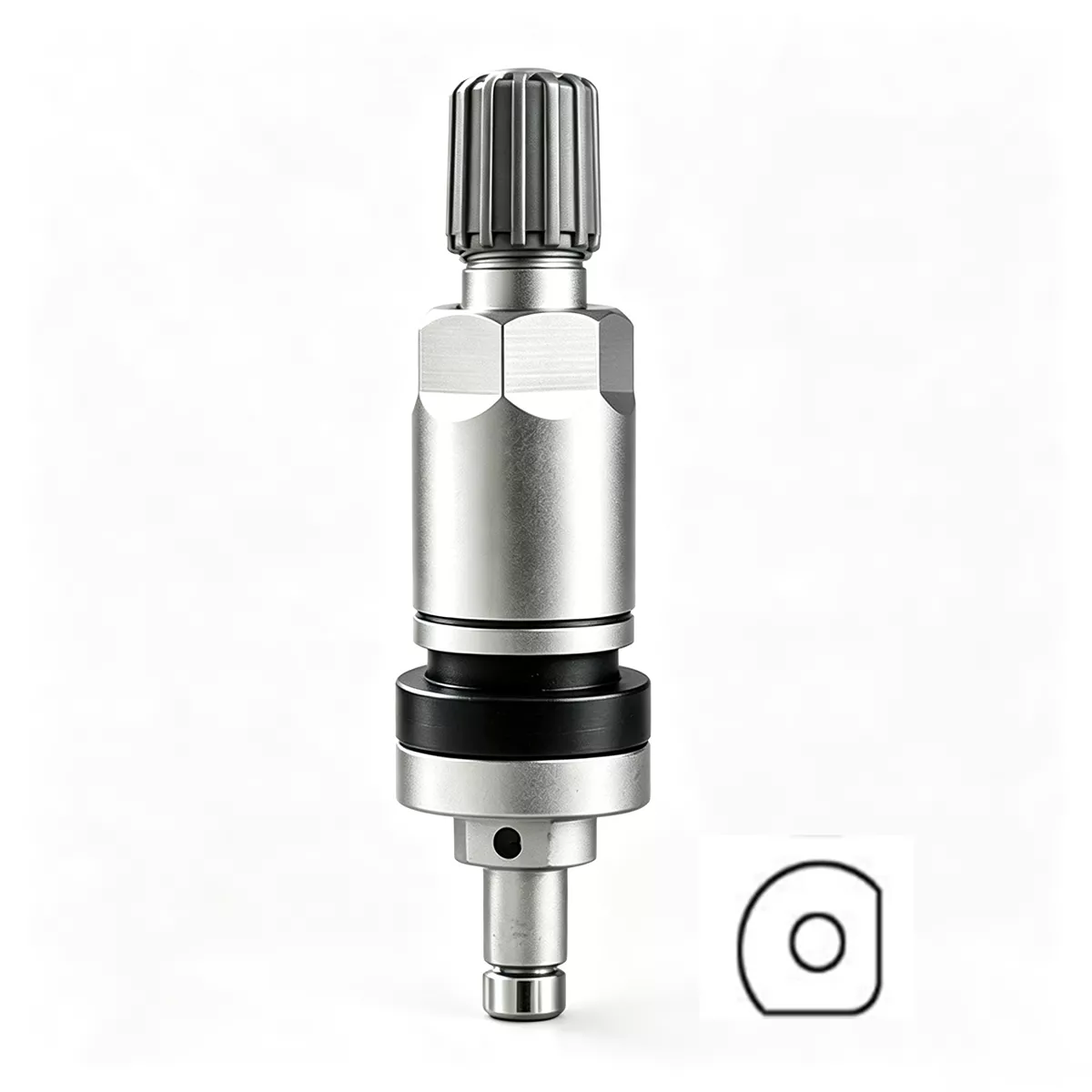

Trimming Positioning Structure for Better StabilityTPMS Valve 08 adopts a precision trimming design at the valve base, ensuring accurate positioning between the valve stem and rim hole.
Reliable Air Tightness PerformanceA TPMS valve must maintain stable sealing performance under different driving conditions. TPMS Valve 08 is manufactured with precision dimensions.
Technical Product Data
Model
TPMS Valve 08
Type
TPMS Valve Stem
Material
Zinc Alloy
Design
90° Right Angle Trimming
Application
Passenger Cars / SUV / Light Commercial Vehicles
Compatible Brands
Buick, Cadillac, Chevrolet, Volvo, Ford, Renault, Subaru, GMC, Raptor, etc.
Safe and stable, high driving reliability
TPMS Valve 08 features a 90° right angle trimming design for improved installation flexibility and stable TPMS performance. It is compatible with multiple vehicle brands including Buick, Cadillac, Chevrolet, Volvo, Ford, Renault and Subaru.
Compared with straight TPMS valves, the 90° design offers greater installation flexibility, especially for wheels with deep rims or special structures.
Improves mounting stability
Ensures consistent sensor positioning
Enhances sealing reliability
Ideal for passenger cars and SUVs
Universal adaptation, extremely compatible
Standard 11.5mm (0.453 inch) wheel hub hole
Original steel rims and ordinary alloy wheels are universal, and 95% of household car vacuum tires and wheels on the market can be directly replaced. They are standard parts for automotive repair.
Suitable for wheel hub thickness of 1.8-4mm
Full coverage of mainstream wheels for household cars; The maximum pressure capacity is 65 PSI (4.5 bar), fully meeting the standard tire pressure requirements for sedans/SUVs, and suitable for high-speed driving up to 210 km/h.
Effective length 38mm (1.5 inches)
Compared with shorter tire valves, the TR414 provides greater accessibility during tire inflation. Its longer stem design makes it easier to connect air chucks and pressure gauges, especially on alloy wheels with recessed valve openings.
The premium rubber effectively resists cracking caused by ozone, sunlight, heat, and harsh weather conditions, while the brass stem ensures excellent corrosion resistance and long-term durability.
The TPMS Valve 08 tire valve is suitable for
Durable Alloy Construction
The alloy body provides better strength and durability compared with traditional rubber valve stems, making it suitable for repeated vehicle operation.
Stable TPMS Sensor Connection
The special 90-degree right angle structure changes the direction of the valve outlet
Complete Valve Protection
The included metal cap protects the valve core from external contamination and extends the service life of the valve assembly.
Suitable for Vehicle Service and Aftermarket Supply
AutomobilesCarsTrucksSUVsMotorcyclesTire Repair WorkshopsAuto Service CentersWheel Balancing ApplicationsAutomotive Aftermarket Distribution
Installation precautions
Each replacement must use a brand new sealing gasket, and it is forbidden to reuse the old gasket to cause air leakage.
The thread locking force is moderate to avoid excessive force causing thread slippage or damage to the sensor base.
During installation, keep the flat surface parallel to the inner wall of the tire to prevent tilting and rubbing against the tire, which may cause safety hazards.
How to replace the tire valve
01Dismantle the old tire valve
After peeling off the tire, push out the aged and damaged old tire valve from the inside of the wheel hub, and clean the rust and burrs in the wheel hub holes.
02Install a new tire valve
Apply water-based lubricant to the root of the new tire valve, insert it from the outside of the wheel hub, and use a pulling tool to tighten and fix it in place with the wheel hub.
03Leak detection completed
Inflate to standard tire pressure, apply soapy water to the root of the tire valve and check for no bubbles or leaks. Assemble the tire and perform dynamic balancing.
Tip: When replacing the valve, it is necessary to perform dynamic balancing.
Frequently Asked Questions
What is TPMS Valve 08?
TPMS Valve 08 is a 90° right angle trimming TPMS valve stem designed for vehicles equipped with tire pressure monitoring systems. It provides stable installation and reliable sealing performance.
What is the advantage of a 90° TPMS valve stem?
A 90° TPMS valve stem provides easier access for inflation and installation, especially on wheels with limited space or special rim designs.
What vehicles use TPMS Valve 08?
TPMS Valve 08 is compatible with Buick, Cadillac, Chevrolet, Malibu, Mondeo, Volvo, JAC, GMC, Raptor, Ford, Renault, and Subaru vehicle applications.
Can TPMS Valve 08 replace original TPMS valves?
Yes. TPMS Valve 08 is designed as an aftermarket replacement component for compatible TPMS-equipped vehicles.
