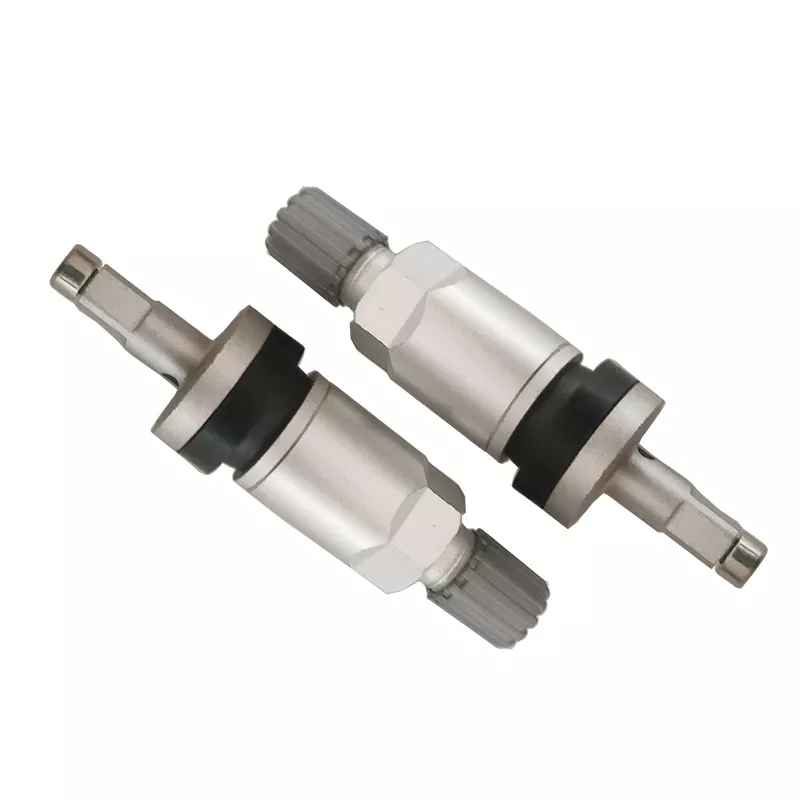

TPMS Valve 07 is a professional tire pressure monitoring valve stem designed for modern vehicles equipped with TPMS systems. Featuring a square trimming structure, this valve provides reliable sealing performance, stable installation, and excellent compatibility with various OEM TPMS sensors.
The square trimming design improves positioning accuracy between the valve stem and wheel rim, helping prevent rotation during installation and long-term vehicle operation. It is widely used in passenger cars, SUVs, and light commercial vehicles, including popular models from Dodge, Ram, Buick, Cadillac, Chevrolet, Volvo, Mercedes-Benz, Jeep, and other vehicle brands.
As a direct TPMS valve manufacturer, we supply high-quality replacement TPMS valve stems suitable for aftermarket distributors, tire shops, and automotive service providers worldwide.
Square Trimming Design for Better StabilityCompared with traditional round designs, the square trimming design helps improve anti-rotation performance and ensures the valve remains securely fixed during driving.
Reliable Air Sealing PerformanceTPMS Valve 07 is manufactured with precision machining technology to ensure accurate dimensions and excellent airtight performance.
High-Quality Material ConstructionStrong corrosion resistance,Excellent mechanical strength,Long service life, Stable performance in different environments.
TPMS Valve 07 Its stable design and wide vehicle compatibility make it suitable for tire dealers, repair shops, and automotive service centers.
TPMS Valve 07 is a square trimming TPMS valve stem designed for reliable tire pressure monitoring system applications. It offers excellent sealing, stable installation, and wide compatibility with multiple OEM vehicle models.
Trimming on three sides
Square trimming
High-strength aluminum alloy + EPDM seal
Tubeless American type, for OEM TPMS sensors
Universal adaptation, extremely compatible
Standard 11.5mm (0.453 inch) wheel hub hole
Original steel rims and ordinary alloy wheels are universal, and 95% of household car vacuum tires and wheels on the market can be directly replaced. They are standard parts for automotive repair.
Suitable for wheel hub thickness of 1.8-4mm
Full coverage of mainstream wheels for household cars; The maximum pressure capacity is 65 PSI (4.5 bar), fully meeting the standard tire pressure requirements for sedans/SUVs, and suitable for high-speed driving up to 210 km/h.
Effective length 38mm (1.5 inches)
Compared with shorter tire valves, the TR414 provides greater accessibility during tire inflation. Its longer stem design makes it easier to connect air chucks and pressure gauges, especially on alloy wheels with recessed valve openings.
The premium rubber effectively resists cracking caused by ozone, sunlight, heat, and harsh weather conditions, while the brass stem ensures excellent corrosion resistance and long-term durability.
The TPMS Valve 06 tire valve is suitable for
Durable Alloy Construction
The alloy body provides better strength and durability compared with traditional rubber valve stems, making it suitable for repeated vehicle operation.
Stable TPMS Sensor Connection
The M3 thread design ensures a secure connection between the valve stem and TPMS sensor, reducing installation issues.
Complete Valve Protection
The included metal cap protects the valve core from external contamination and extends the service life of the valve assembly.
Suitable for Vehicle Service and Aftermarket Supply
AutomobilesCarsTrucksSUVsMotorcyclesTire Repair WorkshopsAuto Service CentersWheel Balancing ApplicationsAutomotive Aftermarket Distribution
Installation precautions
Each replacement must use a brand new sealing gasket, and it is forbidden to reuse the old gasket to cause air leakage.
The M3 thread locking force is moderate to avoid excessive force causing thread slippage or damage to the sensor base.
During installation, keep the flat surface parallel to the inner wall of the tire to prevent tilting and rubbing against the tire, which may cause safety hazards.
How to replace the tire valve
01Dismantle the old tire valve
After peeling off the tire, push out the aged and damaged old tire valve from the inside of the wheel hub, and clean the rust and burrs in the wheel hub holes.
02Install a new tire valve
Apply water-based lubricant to the root of the new tire valve, insert it from the outside of the wheel hub, and use a pulling tool to tighten and fix it in place with the wheel hub.
03Leak detection completed
Inflate to standard tire pressure, apply soapy water to the root of the tire valve and check for no bubbles or leaks. Assemble the tire and perform dynamic balancing.
Tip: When replacing the valve, it is necessary to perform dynamic balancing.
Frequently Asked Questions
What is TPMS Valve 07 used for?
TPMS Valve 07 is a replacement TPMS valve stem used to install tire pressure monitoring sensors on compatible vehicles. It helps maintain proper tire pressure monitoring system operation.
What does square trimming mean on a TPMS valve?
Square trimming refers to the square-shaped positioning structure at the valve base. This design improves installation accuracy and helps prevent valve rotation after installation.
Which vehicles use TPMS Valve 07?
TPMS Valve 07 is compatible with many vehicle applications, including Dodge, Ram, Buick, Cadillac, Chevrolet, Malibu, Mondeo, Volvo, JAC, GMC, Raptor, Mercedes-Benz, and Jeep models.
Can TPMS Valve 07 replace original valve stems?
Yes. TPMS Valve 07 is designed as an aftermarket replacement valve stem for compatible TPMS-equipped vehicles.
