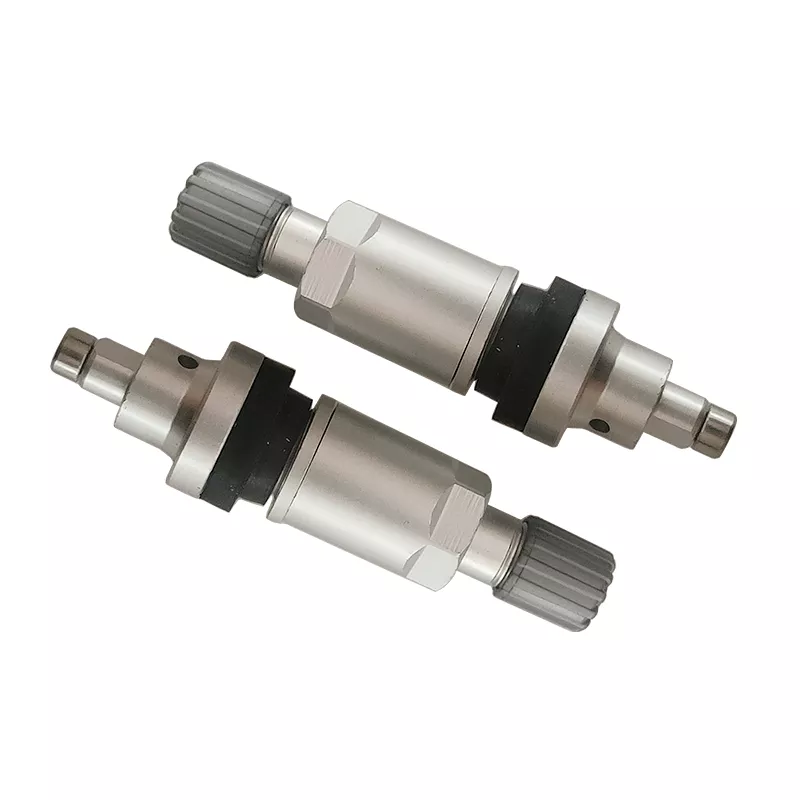

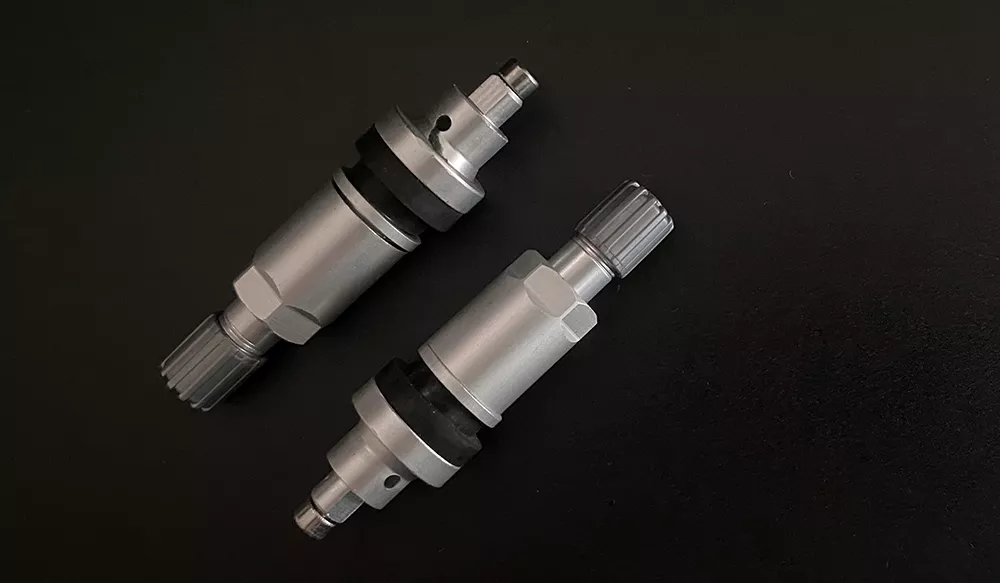

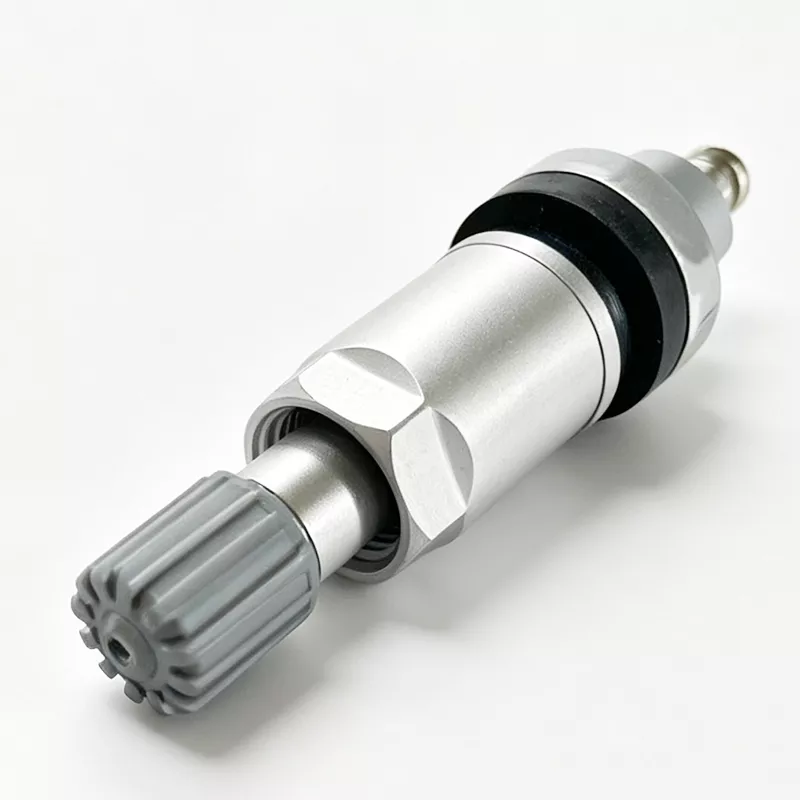

TPMS Valve 10 – 180° Bottom Cut TPMS Valve Stem for Vehicle Tire Pressure Monitoring Systems
TPMS Valve 10 is a high-quality tire pressure monitoring system (TPMS) valve stem designed with a 180° bottom angle cut design for reliable air sealing, stable sensor installation, and excellent compatibility with various passenger vehicles.
This TPMS valve stem is engineered for modern vehicles equipped with tire pressure monitoring systems. The 180-degree bottom trimming structure provides accurate positioning, improved installation stability, and strong sealing performance, helping maintain proper tire pressure monitoring accuracy and driving safety.
TPMS Valve 10 is widely used for vehicles from Geely, BYD, Buick, Ford, Nissan Sylphy, Volvo, JAC, GMC, Chery, and Cadillac, making it an ideal replacement solution for automotive repair shops, tire service centers, and TPMS specialists.
Bottom 180° Angle Trimming DesignTPMS Valve 09 adopts a bottom 180° angle trimming structure, which improves the matching accuracy between the valve stem base and the rim mounting hole.
Optimized Design for New Energy VehiclesWith the rapid development of electric vehicles, TPMS components require higher reliability and compatibility.Its compact structure makes it suitable for various original and replacement TPMS applications.
Excellent Air Sealing PerformanceReliable air retention is essential for TPMS valve performance. TPMS Valve 09 is manufactured with precise dimensions.
TPMS Valve 10 is a bottom 180° angle trimming TPMS valve stem designed for Geely, BYD, Buick, Ford, Nissan Sylphy, Volvo, JAC, GMC, Chery, and Cadillac. It provides excellent sealing, accurate positioning, and reliable TPMS performance.
Improves mounting stability
Ensures consistent sensor positioning
Enhances sealing reliability
Ideal for passenger cars and SUVs
Universal adaptation, extremely compatible
Standard 11.5mm (0.453 inch) wheel hub hole
Original steel rims and ordinary alloy wheels are universal, and 95% of household car vacuum tires and wheels on the market can be directly replaced. They are standard parts for automotive repair.
Suitable for wheel hub thickness of 1.8-4mm
Full coverage of mainstream wheels for household cars; The maximum pressure capacity is 65 PSI (4.5 bar), fully meeting the standard tire pressure requirements for sedans/SUVs, and suitable for high-speed driving up to 210 km/h.
Effective length 38mm (1.5 inches)
Compared with shorter tire valves, the TR414 provides greater accessibility during tire inflation. Its longer stem design makes it easier to connect air chucks and pressure gauges, especially on alloy wheels with recessed valve openings.
The premium rubber effectively resists cracking caused by ozone, sunlight, heat, and harsh weather conditions, while the brass stem ensures excellent corrosion resistance and long-term durability.

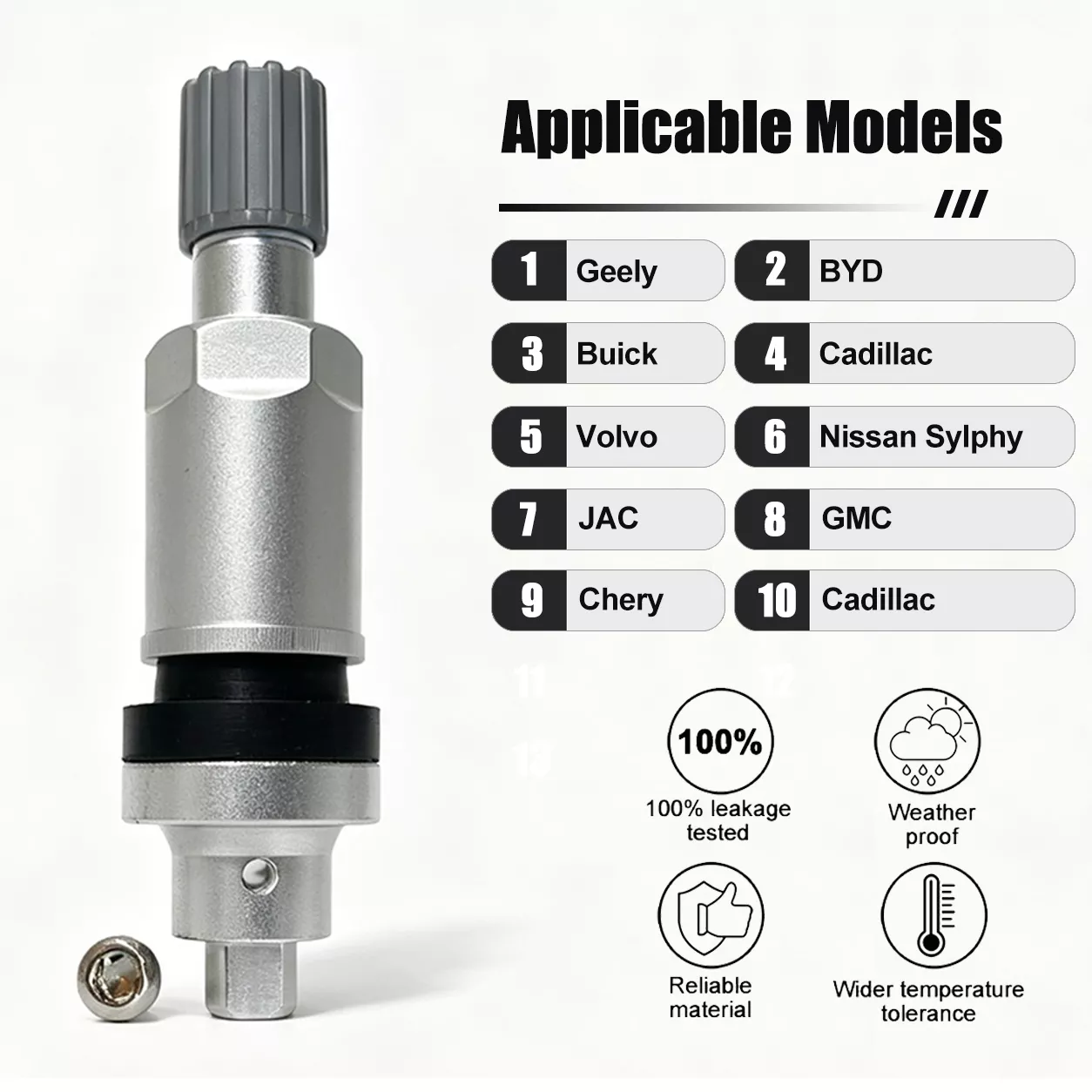

Applications of TPMS Valve 10
TPMS Valve 10 is commonly used for vehicles equipped with TPMS systems, including:
Chinese Vehicle Brands
Geely
BYD
JAC
Chery
American Vehicle Brands
Buick
Ford
GMC
Cadillac
European Vehicle Brands
Volvo
Asian Vehicle Models
Nissan Sylphy
This wide compatibility makes TPMS Valve 10 a popular choice for global automotive aftermarket suppliers.
The TPMS Valve 08 tire valve is suitable for
Durable Alloy Construction
The alloy body provides better strength and durability compared with traditional rubber valve stems, making it suitable for repeated vehicle operation.
Stable TPMS Sensor Connection
The special 90-degree right angle structure changes the direction of the valve outlet
Complete Valve Protection
The included metal cap protects the valve core from external contamination and extends the service life of the valve assembly.
Suitable for Vehicle Service and Aftermarket Supply
AutomobilesCarsTrucksSUVsMotorcyclesTire Repair WorkshopsAuto Service CentersWheel Balancing ApplicationsAutomotive Aftermarket Distribution
Installation precautions
Each replacement must use a brand new sealing gasket, and it is forbidden to reuse the old gasket to cause air leakage.
The thread locking force is moderate to avoid excessive force causing thread slippage or damage to the sensor base.
During installation, keep the flat surface parallel to the inner wall of the tire to prevent tilting and rubbing against the tire, which may cause safety hazards.
How to replace the tire valve
01Dismantle the old tire valve
After peeling off the tire, push out the aged and damaged old tire valve from the inside of the wheel hub, and clean the rust and burrs in the wheel hub holes.
02Install a new tire valve
Apply water-based lubricant to the root of the new tire valve, insert it from the outside of the wheel hub, and use a pulling tool to tighten and fix it in place with the wheel hub.
03Leak detection completed
Inflate to standard tire pressure, apply soapy water to the root of the tire valve and check for no bubbles or leaks. Assemble the tire and perform dynamic balancing.
Tip: When replacing the valve, it is necessary to perform dynamic balancing.
Frequently Asked Questions
What is TPMS Valve 10?
TPMS Valve 10 is a replacement TPMS valve stem featuring a 180° bottom angle cut design, used for connecting tire pressure monitoring sensors with vehicle wheels.
What vehicles use TPMS Valve 10?
TPMS Valve 10 is compatible with vehicles including Geely, BYD, Buick, Ford, Nissan Sylphy, Volvo, JAC, GMC, Chery, and Cadillac.
What is the advantage of the 180° bottom cut design?
The 180° bottom cut design improves sensor positioning accuracy, installation stability, and sealing performance compared with standard valve structures.
Can TPMS Valve 10 replace original TPMS valve stems?
Yes. TPMS Valve 10 is designed as an aftermarket replacement component suitable for professional TPMS repair and replacement applications.
