Tr415 Car Tire Valve – Reliable Sealing Solution for Tubeless Wheels

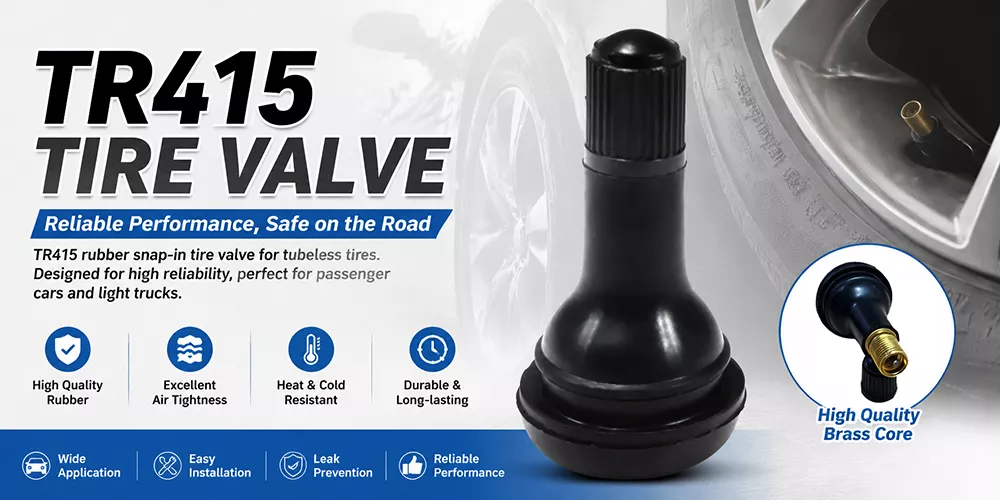

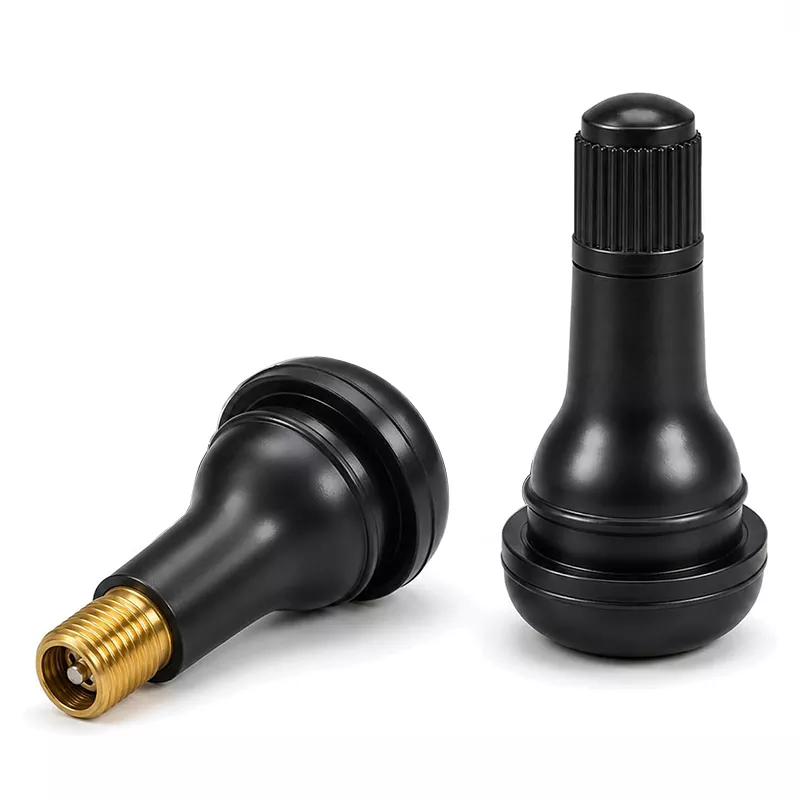

The TR415 Tire Valve Stem is a long rubber snap-in valve designed for tubeless tire applications where a standard valve stem may not provide sufficient clearance or accessibility.
Compared with conventional short rubber valves, the TR415 features an extended valve body design, making it suitable for wheels with deeper valve holes or special rim structures. It provides stable air retention, easy installation, and dependable performance for passenger vehicles, trailers, light trucks, and various aftermarket wheel applications.
Manufactured with high-quality rubber compounds and precision valve components, Shengshi Weiye TR415 tire valves are tested to ensure excellent sealing performance and long service life.
Excellent Airtight SealingExcellent airtight sealing to minimize pressure loss.
SuitableSuitable for steel and aluminum wheels with a 15.7-15.9 mm (0.625") valve hole.
CustomizationAvailable in black rubber, chrome sleeve, and customized versions.
Technical Product Data
Model
Tr415
Type
Snap-In Tubeless Tire Valve
Material

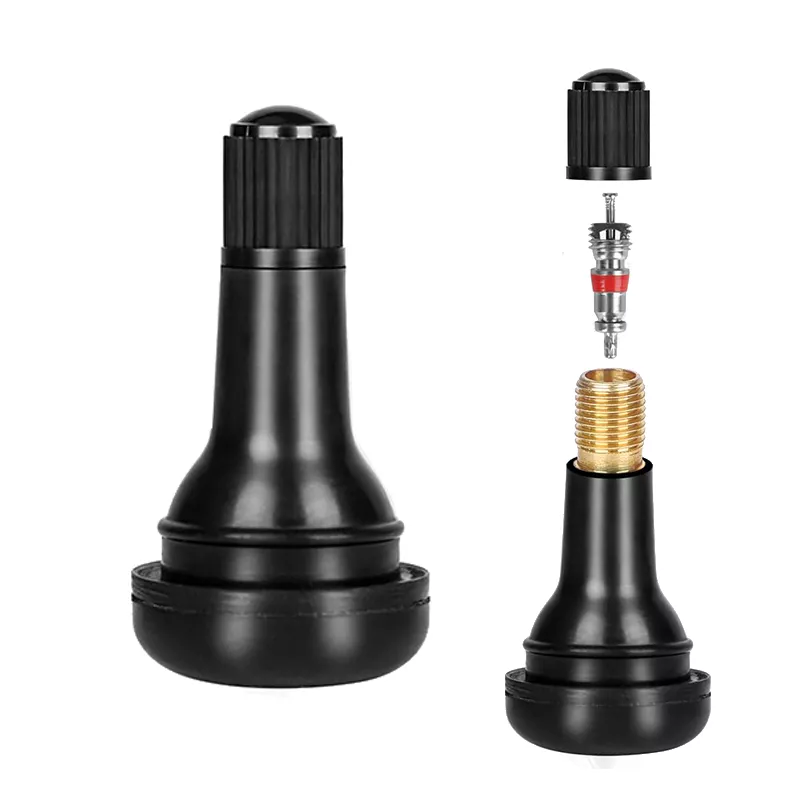

Rubber + Brass Stem
Rim Hole Diameter
15.7-15.9 mm (0.625")
Rim Hole Diameter
11.5 mm ( 0.453" )
Color
Black

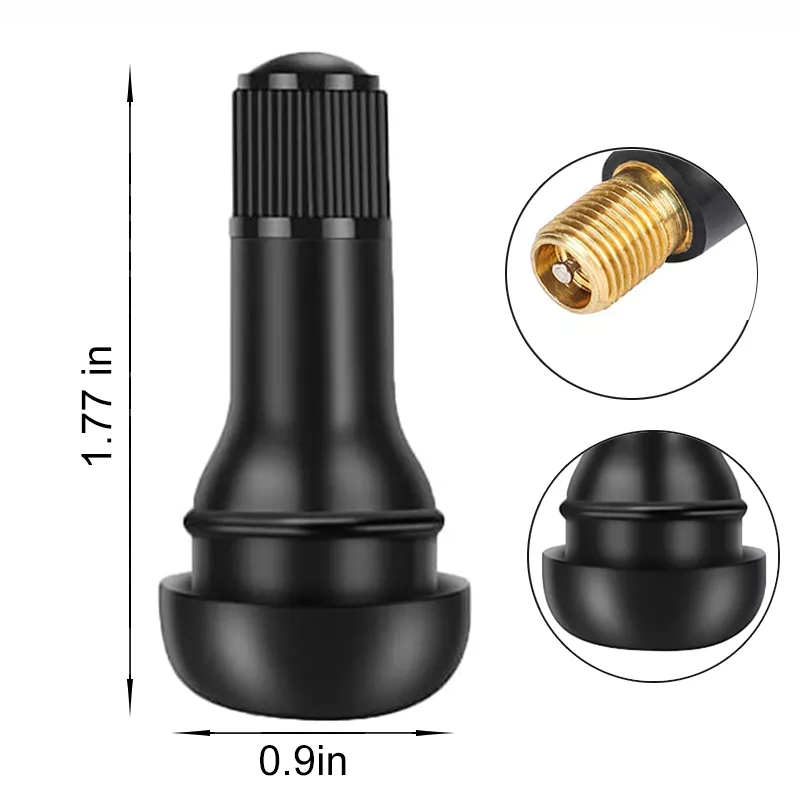

Total Height
Approx. 45 mm
Maximum Pressure
65 PSI
Application
Passenger Cars, Light Trucks, Trailers
Safe and stable, high driving reliability
Extended Snap-In Design for Better Wheel Compatibility
The TR415 adopts a longer rubber stem structure, allowing easier access to the valve core when the valve hole is recessed or positioned deeper inside the wheel design.
Compared with standard TR413 valves, TR415 provides additional stem length for specific wheel applications.
The rubber base creates a secure seal between the valve stem and wheel rim, helping reduce air leakage risks.
Improve driving safety
Reduce uneven tire wear
Enhance fuel efficiency
Extend tire service life
Universal adaptation, extremely compatible
Standard 24mm wheel hub hole
Original steel rims and ordinary alloy wheels are universal, and 95% of household car vacuum tires and wheels on the market can be directly replaced. They are standard parts for automotive repair.
Suitable for wheel hub thickness of 1.8-4mm
Full coverage of mainstream wheels for household cars; The maximum pressure capacity is 65 PSI (4.5 bar), fully meeting the standard tire pressure requirements for sedans/SUVs, and suitable for high-speed driving up to 210 km/h.
Effective length 42mm
The TR415 provides greater accessibility during tire inflation. Its design makes it easier to connect air chucks and pressure gauges, especially on alloy wheels with recessed valve openings.

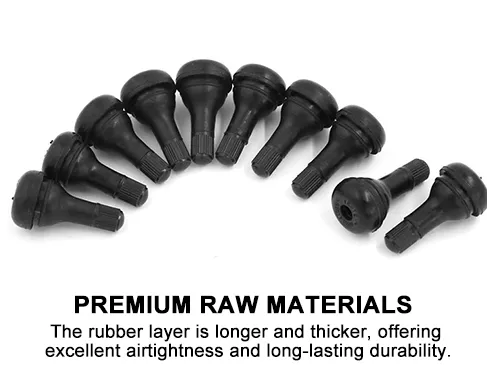

The premium rubber effectively resists cracking caused by ozone, sunlight, heat, and harsh weather conditions, while the brass stem ensures excellent corrosion resistance and long-term durability.
The TR415 tire valve is suitable for
Passenger vehicle tire replacement
Rubber valves degrade after 3 years with cracks. Skipping valve replacement leads to slow leaks and breakage at high speeds.
Tire service centers
New TR415 Tire valves fitted with every tire change to stop leaks and high-speed valve damage from aged rubber stems.
Automotive repair workshops
Every tire change equipped with durable TR413 valve stems. Replace tires and valves at once to solve air leakage problems and ensure driving safety.
Wheel manufacturers
The gray coating offers a clean, professional finish after installation.
Tire distributors
The stick-on design helps achieve dynamic balance without damaging the wheel edge.
Fleet maintenance
Surface processing, tape selection, labeling and packaging can be customized according to customer requirements.
TR415 vs TR413 vs TR414 Comparison
Model
Length
Rim Hole
Main Application
TR413
Standard
11.5mm
Most passenger cars
TR414
Medium Length
11.5mm
Wheels requiring longer stem
TR415
Longer Length
13.5mm
Larger valve hole / special wheels
Suitable for Vehicle Service and Aftermarket Supply
AutomobilesCarsTrucksSUVsMotorcyclesTire Repair WorkshopsAuto Service CentersWheel Balancing ApplicationsAutomotive Aftermarket Distribution
Standard Box Packing with Custom Branding Support
100Strips / Box
Regular packing unit for wholesale, workshop and distributor replenishment.
OEMLabel & Carton
Custom labels, carton marks and brand packaging can be arranged for market-specific orders.
ODMSpecification Support
Tape, slitting, surface treatment and packaging can be adjusted according to customer needs.
How to replace the tire valve
01Dismantle the old tire valve
After peeling off the tire, push out the aged and damaged old tire valve from the inside of the wheel hub, and clean the rust and burrs in the wheel hub holes.
02Install a new tire valve
Apply water-based lubricant to the root of the new tire valve, insert it from the outside of the wheel hub, and use a pulling tool to tighten and fix it in place with the wheel hub.
03Leak detection completed

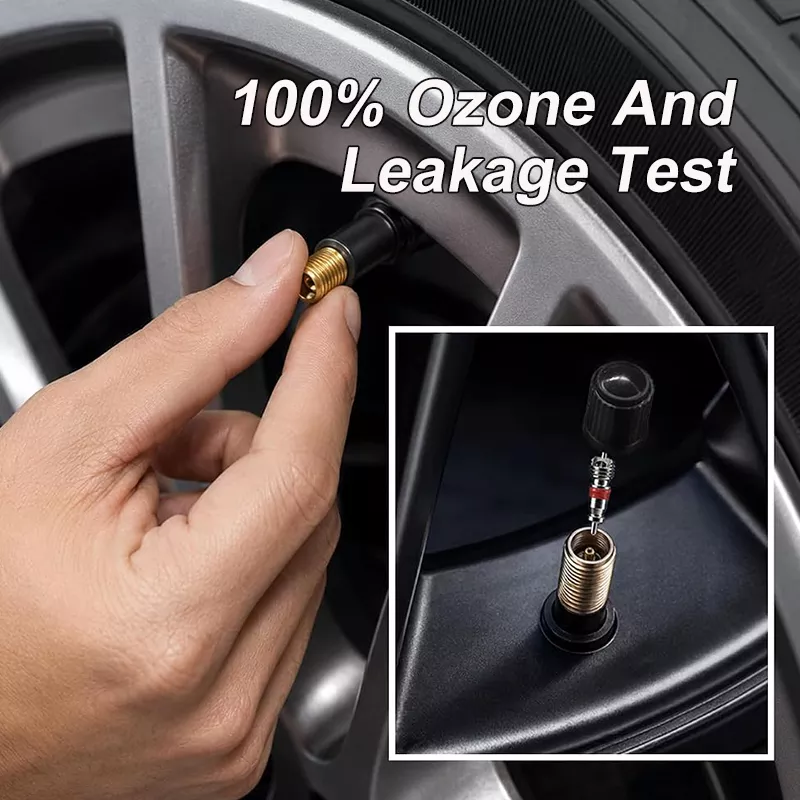

Inflate to standard tire pressure, apply soapy water to the root of the tire valve and check for no bubbles or leaks. Assemble the tire and perform dynamic balancing.
Tip: When replacing the valve, it is necessary to perform dynamic balancing.
Frequently Asked Questions
What is a TR415 tire valve?
TR415 is a tubeless rubber snap-in tire valve designed for wheels with larger 0.625 inch valve holes. It provides reliable air sealing for various vehicle applications.
What is the difference between TR413 and TR415?
TR413 is designed for standard 11.5mm valve holes, while TR415 is designed for larger 15.7-15.9mm valve holes and provides a longer valve stem structure.
Can TR415 replace TR413?
No. TR415 and TR413 have different rim hole specifications. Before replacement, confirm the wheel valve hole size.
What vehicles use TR415 tire valves?

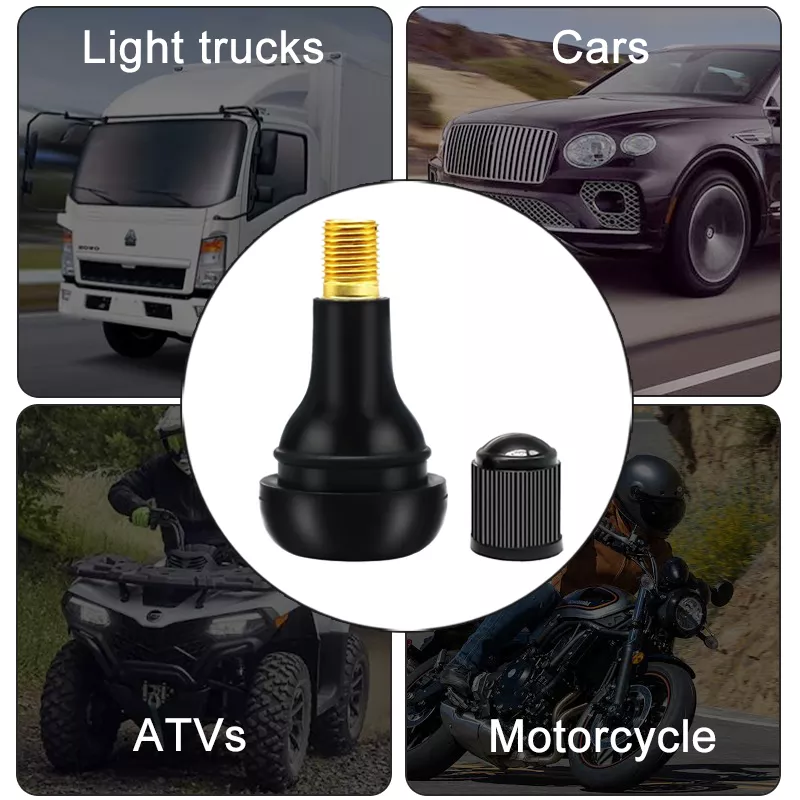

TR415 valves are commonly used on passenger vehicles, light trucks, trailers, and special wheel applications requiring a longer rubber valve stem.
How often should tire valves be replaced?
It is recommended to replace rubber tire valves whenever installing new tires because rubber materials can age over time due to heat, ozone, and environmental exposure.
Are TR415 valves suitable for aluminum wheels?
Yes. TR415 can be used on compatible aluminum and steel wheels with the correct valve hole diameter.
