Truck Tire Valves TR510

Designed for compatible tubeless commercial truck, trailer, and bus wheel applications,

Product Name: Truck Tire Valves TR510
Model: TR510
Valve Type: Clamp-In Tire Valve
Application: Tubeless Truck Tire
Material: Brass
Surface Finish: Nickel Plated

WhatsApp+86-18603173565 Emailwheelweight17@ssqcpj.com

Send Inquiry

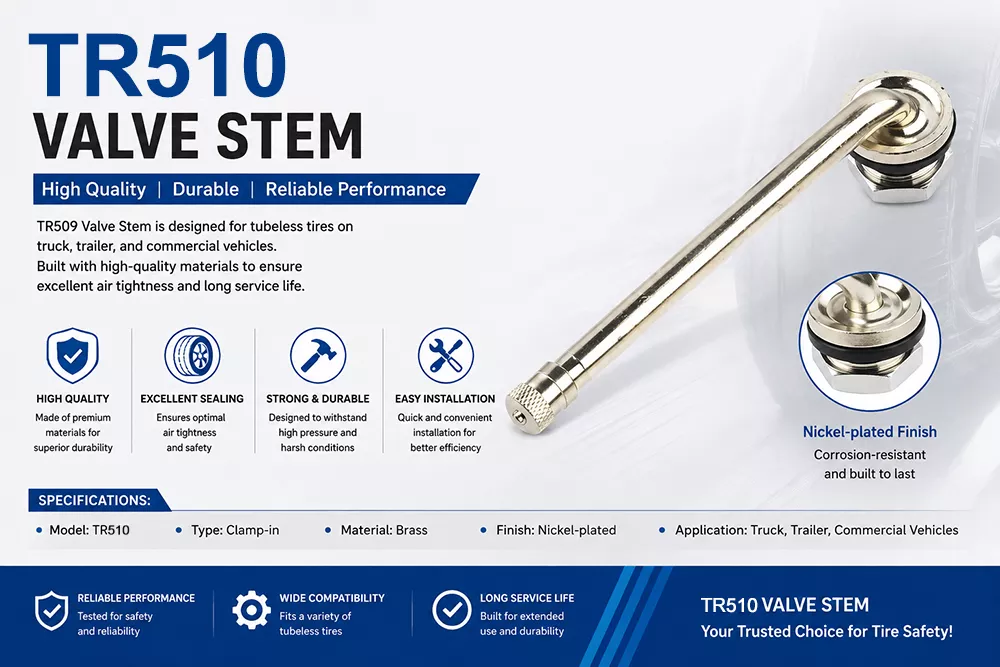

Truck Tire Valves TR510 – 90 Degree Nickel-Plated Brass Valve Stem for Aluminum Wheels

Truck Tire Valves TR510 is a heavy-duty 90-degree clamp-in valve stem designed for tubeless truck, bus, trailer, and commercial vehicle tires. Featuring a long 5.5-inch effective length, durable brass construction, and a protective nickel-plated finish, the TR510 valve stem provides convenient access for tire inflation and pressure maintenance.

The TR510 is commonly used on compatible drop-center aluminum disc wheels with a 0.625 inch (5/8 inch or approximately 15.7 mm) valve hole. Its 90-degree bent design makes the valve easier to access compared with a straight valve stem, especially in commercial truck and heavy-duty wheel applications.

Designed for professional tire service, replacement, maintenance, and aftermarket distribution, this TR510 truck tire valve is an ideal choice for tire shops, truck repair centers, fleet maintenance companies, and automotive parts wholesalers.

Truck Tire Valves TR510

Technical Product Data

Product Name	Truck Tire Valves TR510
Model	TR510
Valve Type	Tubeless Clamp-In Truck Valve
Bend Angle	90°
Material	Brass
Surface Finish	Nickel Plated
Bend Angle	90°
Surface Finish	Nickel Plated

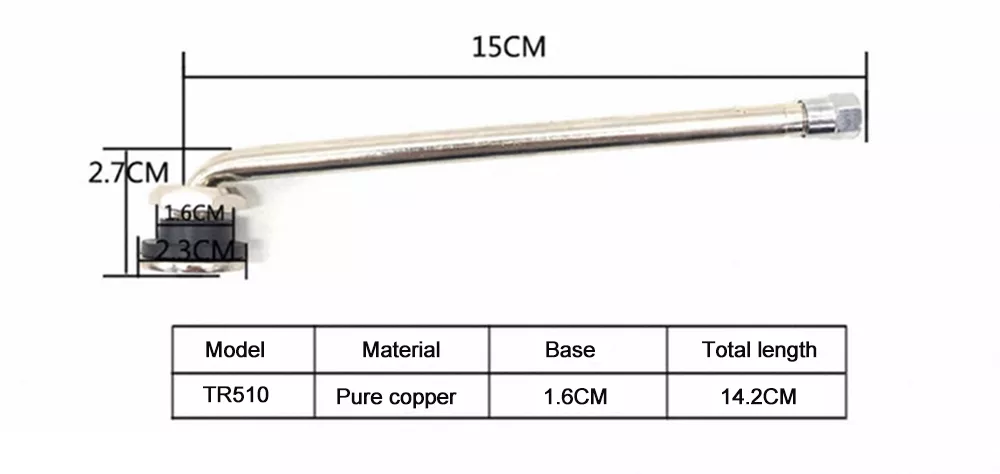

Effective Length	5.5 in. / Approx. 140 mm
Valve Hole Size	0.625 in. / 5/8 in. / Approx. 15.7 mm
Mounting Type	Clamp-In
Wheel Application	Compatible Aluminum Wheels

Why Choose Truck Tire Valves TR510?

Tire valves are small but essential components of every wheel assembly. A reliable valve stem helps support proper tire inflation and makes routine tire pressure maintenance more convenient.

The Truck Tire Valves TR510 combines a long 5.5-inch design with a 90-degree bend for convenient access in compatible commercial wheel applications.

90° angled valve stem for convenient access
Designed for compatible aluminum wheels
Clamp-in mounting structure
Suitable for truck, bus, and trailer applications
Ideal for replacement and aftermarket supply
Available for wholesale and bulk orders

Product Advantages

90° Angled Design

The TR509 features a practical 90-degree bend that provides easier access for tire inflation, air pressure checking, and routine maintenance.

Long 5.5 Inch Effective Length

With an effective length of approximately 5.5 inches, the TR510 provides extended access compared with shorter truck tire valve stems.

Nickel-Plated Surface

The nickel-plated finish provides additional surface protection and gives the valve stem a clean metallic appearance

Applications

Truck Tire Valves TR510 is suitable for compatible tubeless commercial tire and wheel applications.

Typical Applications Include

Heavy-duty trucks
Commercial trucks
Semi-trucks
Truck trailers
Buses
Fleet vehicles
Tire service centers
Truck repair workshops
Commercial vehicle maintenance companies
Tire and wheel distributors

The TR510 is commonly used with compatible drop-center aluminum disc wheels with a 0.625-inch valve hole.

Always verify wheel type, valve hole diameter, rim design, and valve compatibility before installation.

Ideal for Tire Shops and Commercial Fleets

For professional tire service businesses, having reliable replacement tire valves in stock is important for daily maintenance operations.

The TR510 valve stem is a popular commercial truck valve style because of its combination of:

Long valve access
90-degree angled design
Clamp-in mounting
Metal construction
Compatibility with common aluminum commercial wheels

It is suitable for tire dealers, truck service centers, fleet maintenance companies, and automotive aftermarket distributors.

Easy Installation

The TR509 is designed for clamp-in installation on compatible wheels.

General Installation Steps

1.Confirm that the wheel valve hole is compatible with the TR509 specification.

2.Clean the valve mounting area before installation.

3.Check the valve, grommet, washer, and nut for damage.

4.Install the valve through the wheel according to the applicable assembly design.

5.Tighten the mounting hardware according to the applicable manufacturer specification.

6.Check the tire valve assembly for air leaks.

7.Install the valve cap after inspection.

Important: Do not exceed the recommended installation torque. Always follow the specifications supplied by the valve, wheel, and vehicle manufacturers. Published TR509-series references commonly list installation torque in the 100–125 in-lb range, but the final requirement should be verified for the exact valve and wheel assembly.

The Truck Tire Valves TR510 widely used for:

Heavy-duty trucksCity BusesCommercial TrailersCoachesAgricultural Cehicles
Construction MachineryFleet MaintenanceTire Service WorkshopsFleet MaintenanceTire Service Workshops

Standard Box Packing with Custom Branding Support

Logo Customized LOGO Carving

Laser engraving of customer trademarks and corporate logos on brass rods and dust caps.

OEM Sealing accessory upgrade

Ordinary EPDM rubber upgraded rubber sealing ring, thickened stainless steel gasket, double-layer sealing gasket set.

ODM Complete packaging set

Print customer logos and brand names. Printing brand labels, place of origin, specifications, and moisture-proof labels on cardboard boxes.

How to Install a TR510 Truck Tire Valve Stem

Step 1: Check Wheel Compatibility

Confirm that the wheel is compatible with a TR510 valve and has the required valve hole specification.

Step 2: Clean the Valve Hole

Clean the mounting area and remove dirt, corrosion, or damaged sealing material.

Step 3: Inspect the Valve Components

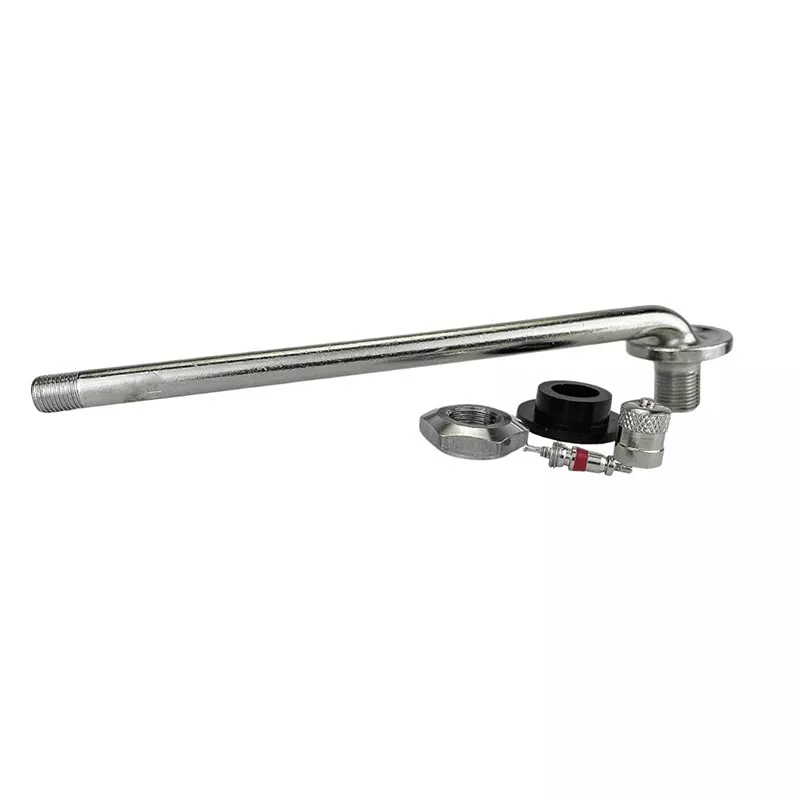

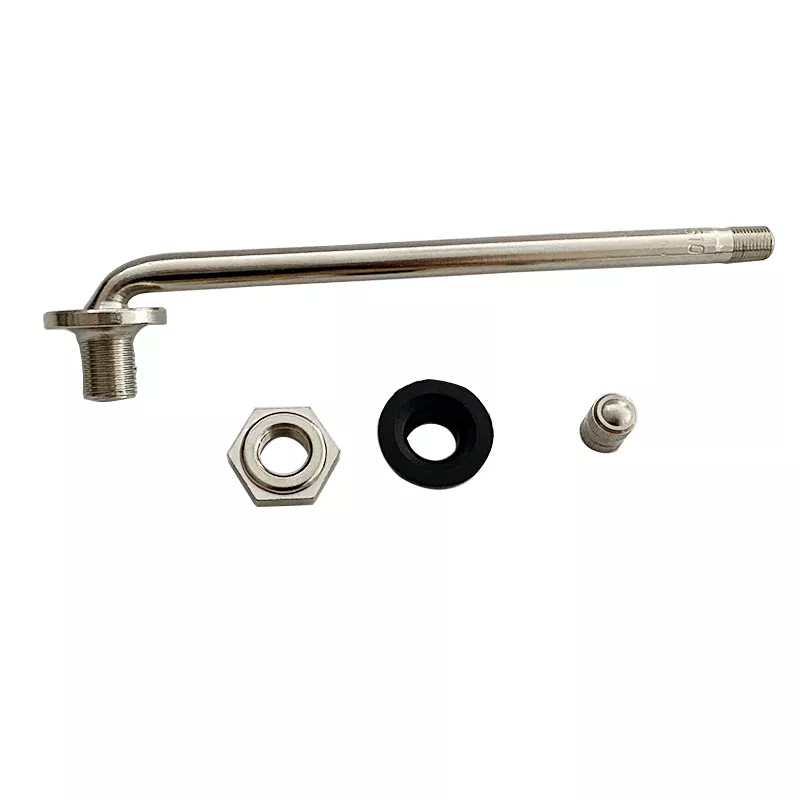

Check the valve stem, grommet, nut, washer, valve core, and cap before installation.

Step 4: Install the Valve

Insert and secure the valve according to the applicable installation design.

Step 5: Tighten Correctly

Tighten the valve hardware according to the specifications provided for the exact valve and wheel assembly.

Step 6: Perform a Leak Test

After installation and tire inflation, check the valve assembly for air leakage.

Step 7: Install the Valve Cap

Install a suitable valve cap to help protect the valve core from dust and contaminants.

Important: Always follow the installation requirements for the specific valve, wheel, and vehicle application. Do not use a torque value from a different valve or wheel configuration.

Clean, Press and Wait for Strong Adhesion

01Release the air and remove the old valve

Lift up the vehicle, release the tire pressure, remove the tire, and remove the old valve; Clean the rust and residue of the wheel rim installation holes and old sealing rings, and check for any deformation or burrs in the hole positions.

02Assemble a brand new tire valve and seal it

Lock evenly with standard torque to prevent deviation and slow air leakage; Adjust the valve angle to avoid friction with the tire wall, and install a brand new high-temperature resistant valve core.

03Testing+Dynamic Balance Loading

Inflate to the standard tire pressure of the vehicle and check for any air leaks; Perform tire dynamic balancing; Recheck the tire pressure during the loading road test to confirm that there is no leakage or shaking, and then complete the replacement.

Tip: Control the torque and avoid violent twisting. Excessive torque can cause fracturing of the rubber ring and deformation of the wheel rim hole; Insufficient torque leads to turbulence, looseness, and air leakage in the later stage.

Controlled Details from Weight Accuracy to Finished Packing

01Incoming Material Inspection

100% sampling inspection of all raw materials; The spectrometer detects the composition of brass material to eliminate the problems of cracking and corrosion caused by impurities in copper.

02Process Inspection

Micrometer measuring rod length, base diameter, thread; Full inspection of thread gauge to ensure smooth assembly without slipping threads.. Remove semi-finished products that are prone to rust.

03Airtightness Test

High pressure airtight water immersion test: Simulate the working pressure of a heavy truck at 14Bar to maintain pressure, and observe the entire process without any bubbles or leaks; Torque and voltage withstand test.

04Final Inspection

Full inspection of appearance scratches, coating peeling, and laser logo clarity; Control the weight tolerance of the entire machine to ensure stable dynamic balance.

Review Screenshots

Frequently Asked Questions

What is a TR510 tire valve?

A TR510 is a 90-degree clamp-in truck tire valve stem commonly used in compatible tubeless commercial wheel applications. It is generally specified with a 5.5-inch effective length and a 0.625-inch valve hole.

What is the length of a TR510 valve stem?

The TR510 commonly has an effective length of approximately 5.5 inches, or around 140 mm.

What angle is the TR510 valve?

The TR510 features a 90-degree bend.

What size valve hole does TR510 fit?

TR510 is commonly designed for a 0.625-inch (5/8-inch) valve hole, approximately 15.7 mm.
