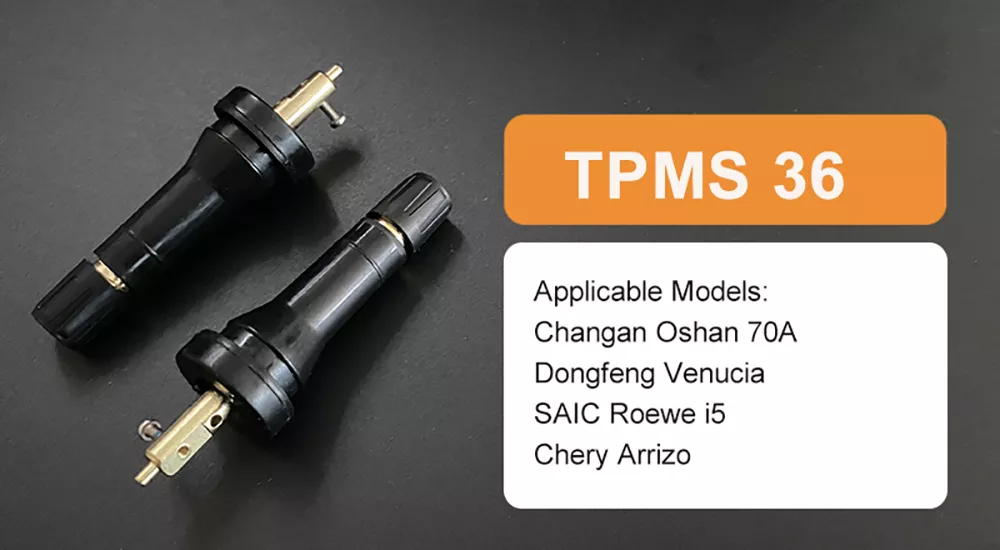

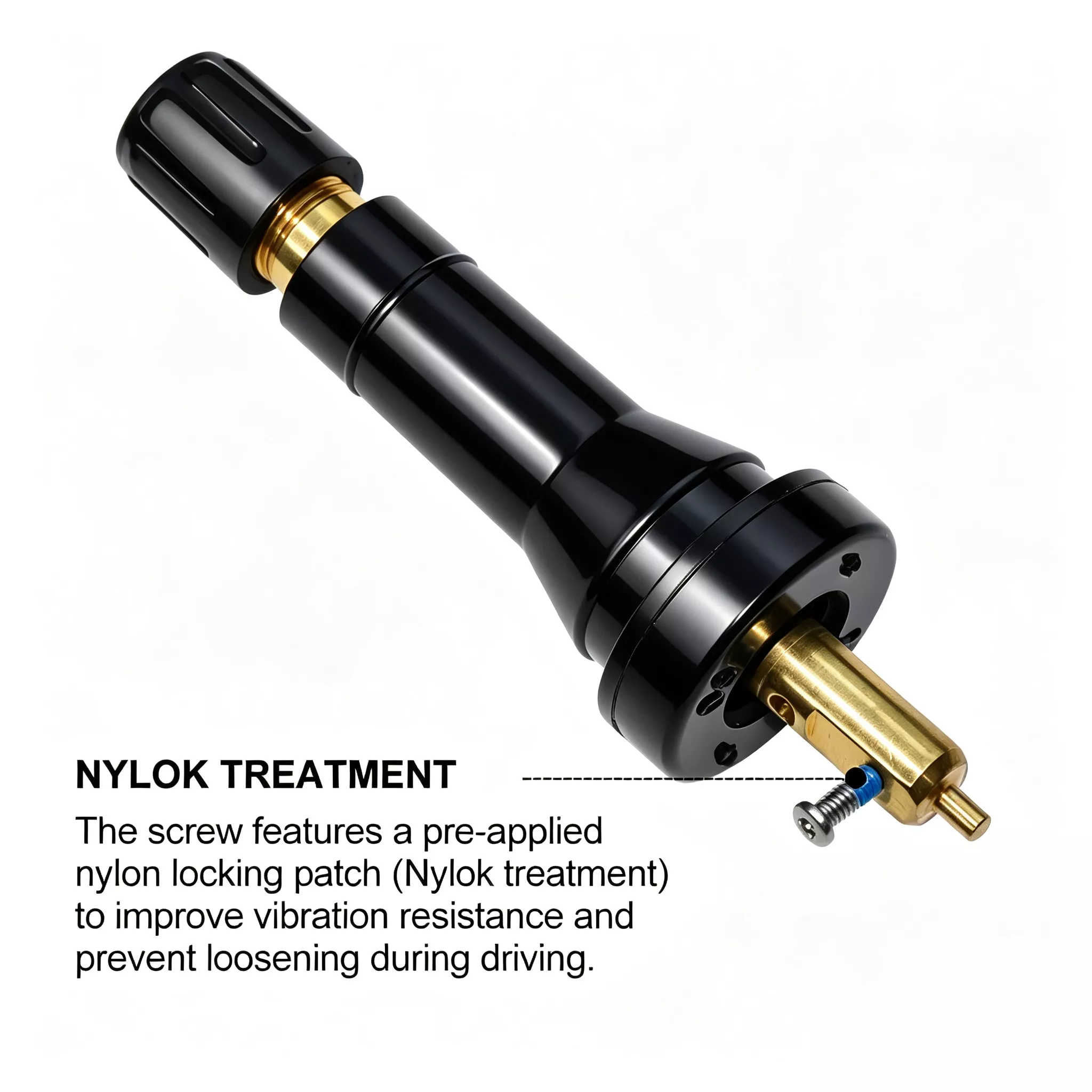

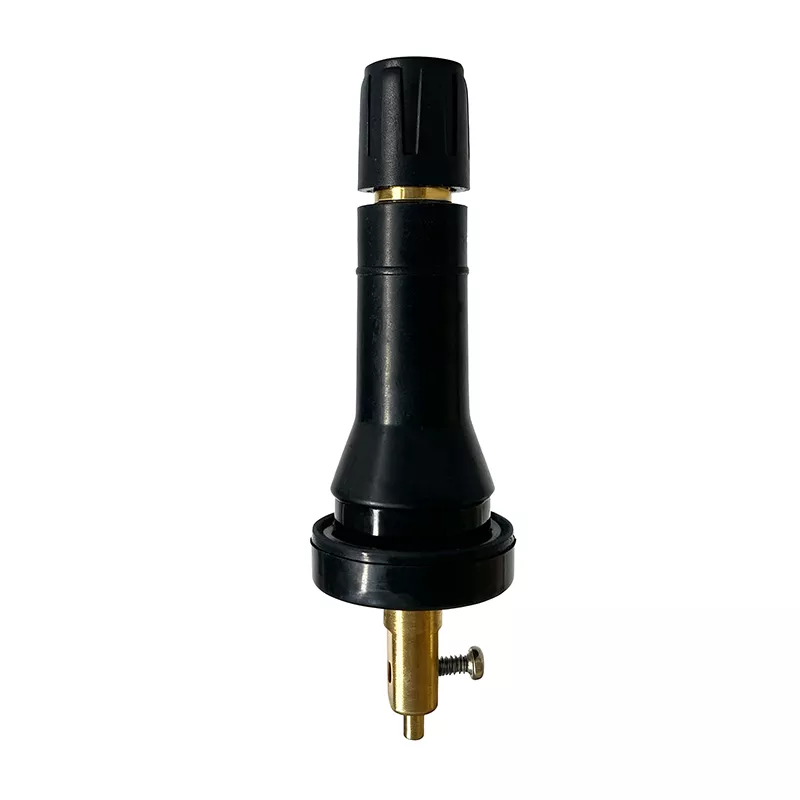

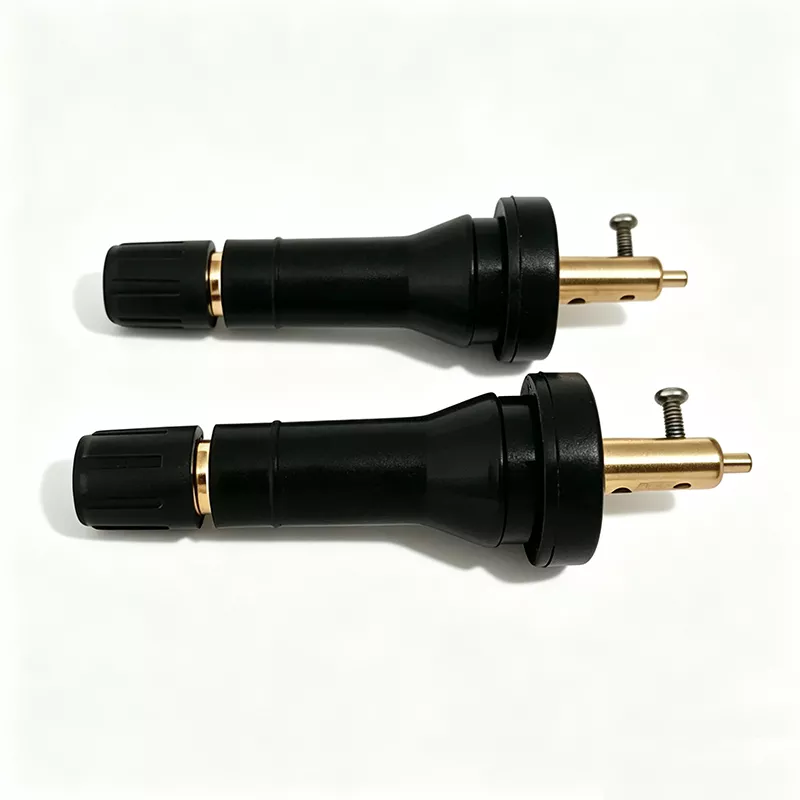

TPMS Valve 36 – Rubber TPMS Valve Stem for Changan Oushang 70A, Dongfeng Venucia, Roewe i5 and Chery Arrizo
TPMS Valve 36 is a professional rubber TPMS valve stem designed for vehicles equipped with direct Tire Pressure Monitoring Systems (TPMS).
The valve stem provides a secure connection between the TPMS sensor and the wheel rim, ensuring stable air sealing and reliable tire pressure monitoring performance.
With a flexible rubber structure, corrosion-resistant metal core, and precision manufacturing process, TPMS Valve 36 is suitable for automotive repair shops, tire service centers, TPMS suppliers, and aftermarket distributors.
This model is specially developed for popular vehicle applications including:
Changan Oushang 70A
Dongfeng Venucia
SAIC Roewe i5
Chery Arrizo

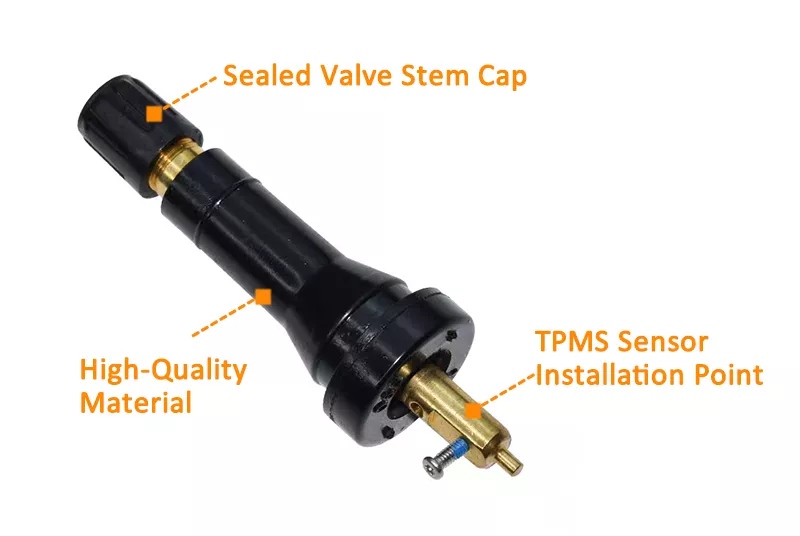

Premium Rubber Snap-in DesignTPMS Valve 36 adopts a rubber snap-in structure, the rubber body helps absorb road vibration and protects the TPMS sensor connection.
Excellent Air Sealing PerformanceSuitable for daily driving and professional aftermarket replacement.
Durable Valve StructureThe internal metal part uses high-quality brass material, Corrosion resistance, Mechanical strength, Long service life.
Technical Product Data
Model
TPMS Valve 36
Type
Rubber TPMS Valve Stem
Application
Tire Pressure Monitoring System
Valve Type
Snap-in Rubber Valve
Additional Application
Compatible Aftermarket TPMS Installation
Installation
Tire Rim Installation
Suitable Brands
Changan, Venucia, Roewe, Chery
Safe and stable, high driving reliability
The optimized rubber valve structure provides excellent sealing performance during long-term vehicle operation.
The snap-in design allows fast replacement during tire service.
Compatible with multiple Chinese vehicle brands and aftermarket TPMS repair requirements.
Easy Installation
Wide Application
OEM Manufacturing Capability
Reliable Sealing
Universal adaptation, extremely compatible
Standard 11.5mm (0.453 inch) wheel hub hole
Original steel rims and ordinary alloy wheels are universal, and 95% of household car vacuum tires and wheels on the market can be directly replaced. They are standard parts for automotive repair.
Suitable for wheel hub thickness of 1.8-4mm
Full coverage of mainstream wheels for household cars; The maximum pressure capacity is 65 PSI (4.5 bar), fully meeting the standard tire pressure requirements for sedans/SUVs, and suitable for high-speed driving up to 210 km/h.
Effective length 38mm (1.5 inches)
Compared with shorter tire valves, the TR414 provides greater accessibility during tire inflation. Its longer stem design makes it easier to connect air chucks and pressure gauges, especially on alloy wheels with recessed valve openings.

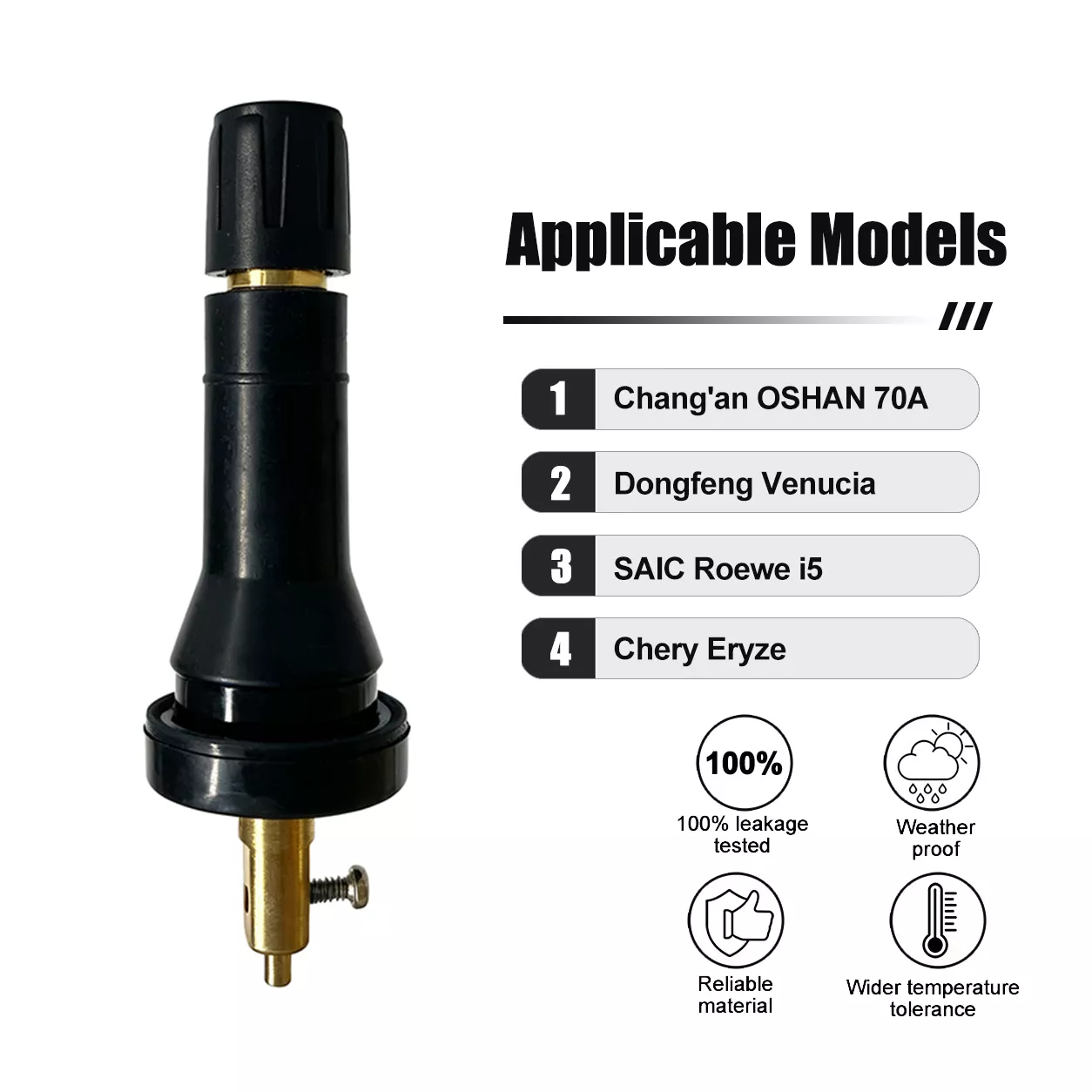

Applicable Models
TPMS Valve 36 is suitable for compatible applications including:
Changan Oushang 70A
Dongfeng Venucia
SAIC Roewe i5
Chery Arrizo
Vehicle compatibility may vary depending on the model year, TPMS sensor design, wheel configuration, and original valve specification. Always verify the original TPMS valve and sensor assembly before ordering or installation.
Key Features
Designed for compatible TPMS replacement applications
Suitable for selected Pentium, Hongqi, FAW, and Hyundai vehicles
Can be used for compatible aftermarket TPMS installations
Suitable for TPMS sensor maintenance and replacement
Designed for professional tire and wheel service
Suitable for automotive aftermarket distribution
Ideal for wholesalers, distributors, and repair workshops
Helps provide a reliable replacement solution for compatible TPMS assemblies
Applicable Vehicle Models
Vehicle Brand
Model
Application
Changan
Oushang 70A
TPMS valve replacement
Dongfeng
Venucia
TPMS valve replacement
SAIC Roewe
i5
TPMS valve replacement
Chery
Arrizo Series
TPMS valve replacement
The TPMS Valve 36 tire valve is suitable for
Durable Alloy Construction
The alloy body provides better strength and durability compared with traditional rubber valve stems, making it suitable for repeated vehicle operation.
Designed for compatible TPMS applications
Suitable for passenger vehicle tire service Compatible with Changan, Venucia, Roewe, Chery.
Complete Valve Protection
The included metal cap protects the valve core from external contamination and extends the service life of the valve assembly.
Suitable for Vehicle Service and Aftermarket Supply
AutomobilesCarsTrucksSUVsMotorcyclesTire Repair WorkshopsAuto Service CentersWheel Balancing ApplicationsAutomotive Aftermarket Distribution
Installation precautions
Each replacement must use a brand new sealing gasket, and it is forbidden to reuse the old gasket to cause air leakage.
The thread locking force is moderate to avoid excessive force causing thread slippage or damage to the sensor base.
During installation, keep the flat surface parallel to the inner wall of the tire to prevent tilting and rubbing against the tire, which may cause safety hazards.
How to replace the tire valve
01Dismantle the old tire valve
After peeling off the tire, push out the aged and damaged old tire valve from the inside of the wheel hub, and clean the rust and burrs in the wheel hub holes.
02Install a new tire valve
Apply water-based lubricant to the root of the new tire valve, insert it from the outside of the wheel hub, and use a pulling tool to tighten and fix it in place with the wheel hub.
03Leak detection completed
Inflate to standard tire pressure, apply soapy water to the root of the tire valve and check for no bubbles or leaks. Assemble the tire and perform dynamic balancing.
Tip: When replacing the valve, it is necessary to perform dynamic balancing.
Frequently Asked Questions
What is TPMS Valve 36?
TPMS Valve 36 is a rubber valve stem designed for tire pressure monitoring systems. It connects the TPMS sensor with the wheel and maintains reliable tire air pressure sealing.
