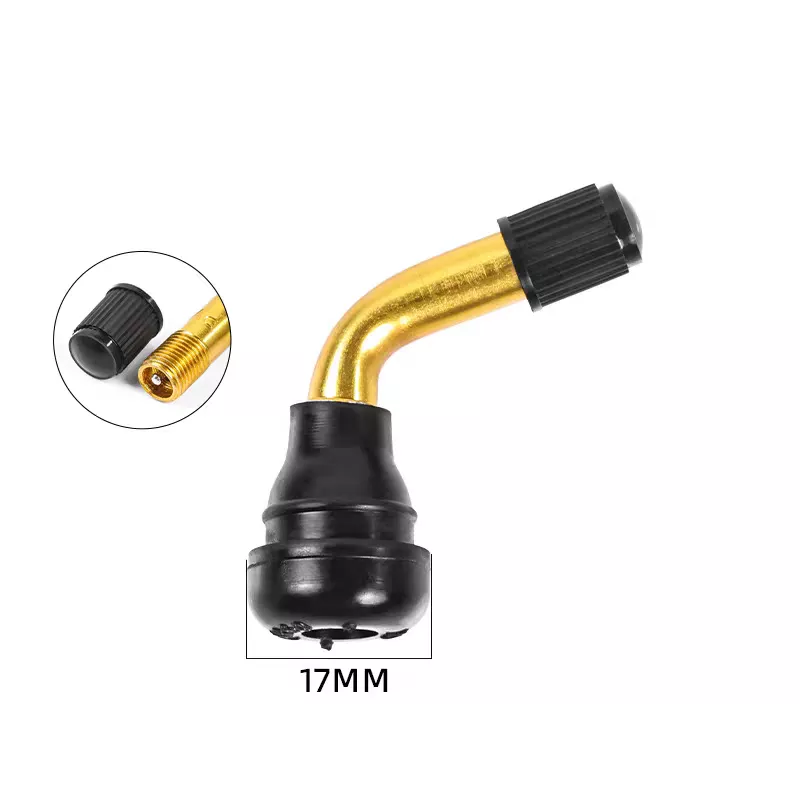

PVR60 Motorcycle Tire Valve | 90° Bent Tubeless Valve Stem
Product Overview
The PVR60 Motorcycle Tire Valve is developed for motorcycle tire service where a dependable valve stem is required for inflation and pressure retention.
Compared with ordinary passenger-car tire valves, motorcycle valves often need to work within a more compact wheel space. The PVR60 design focuses on a suitable footprint, secure wheel mounting and convenient access for tire inflation.
It is suitable for replacement applications during tire mounting, valve servicing and routine motorcycle maintenance.
90° Bent Valve StemCompared with a conventional straight valve, the bent design can provide additional clearance around the wheel and make connection with an air chuck or tire pressure gauge more convenient.
Rubber Sealing BaseFor tubeless applications, proper sealing between the rubber base and rim is essential for maintaining tire pressure.
Tubeless Tire ApplicationIt is installed through the valve hole in the rim and seals against the rim to help prevent air leakage.
Technical Product Data
Product Name
PVR60 Motorcycle Tire Valve
Product Type
Motorcycle Tire Valve / Valve Stem
Application
Motorcycle Wheels & Tires
Valve Design
90° Bent / Angled Stem
Stem Material
Brass
Base Material
Rubber / EPDM
Finish
Standard production finish
Valve Core
Standard Tire Valve Core
Cap
Black Valve Cap
PVR60 Motorcycle Tire Valve is suitable for:
For wholesalers and distributors, a motorcycle tire valve needs to be more than just a replacement component. Consistent dimensions, stable production quality and reliable packaging are important when purchasing valves in volume.
PVR60 can be supplied for wholesale, aftermarket, OEM and private-label programs, depending on order requirements.
Easier inflation
Better clearance
Convenient pressure checking
Suitable for motorcycle wheels
Product Advantages
Metal Threaded Valve Design
PVR60 adopts a brass metal stem structure with external threads, allowing secure installation of valve nuts and accessories.
Rubber Base Sealing Structure
The rubber base is bonded with the inner tube during manufacturing, creating a reliable airtight connection.
Compact Design for Small Wheel Applications
PVR60 features a compact structure, making it suitable for wheels where installation space is limited.
PVR60 vs. Straight Motorcycle Tire Valve
Application
PVR60 Tire Valve Stem are suitable for:
MotorcucleScooter Moped
They are commonly selected by tire shops, wheel manufacturers, and aftermarket distributors requiring durable metal valve solutions.
Standard Box Packing with Custom Branding Support
100PCS / Box
Regular packing unit for wholesale, workshop and distributor replenishment.
OEMLabel & Carton
Custom labels, carton marks and brand packaging can be arranged for market-specific orders.
ODMSpecification Support
Tape, slitting, surface treatment and packaging can be adjusted according to customer needs.
TPVR60 Installation Guide
01Remove the Old Valve
Remove the existing valve stem and clean the valve hole surface.
02Install PVR60 Tire Valve Stem
Insert the PVR60 Tire Valve Stem through the wheel hole and install the sealing washer and nut.
03Tighten and Check
Tighten according to recommended torque and perform an air leakage test.
Tip:After installing the valve nozzle, it is necessary to perform dynamic balancing again.
Controlled Details from Weight Accuracy to Finished Packing
01100% Airtightness Sealing Test
Eliminate chronic air leakage and unstable tire pressure.
02Tensile / Torque Testing
Simulate high-speed vibration to prevent detachment, thread slippage, and rubber seat detachment.
03Environmental Testing
Salt spray rust prevention test and high and low temperature cycling test.
04Size / Appearance Inspection
Ensure universal 11.3mm standard wheel hub aperture, thread standard, and flawless appearance.
Review Screenshots
Frequently Asked Questions
What is a PVR60 Motorcycle Tire Valve?
PVR60 is a motorcycle tire valve designed for compatible motorcycle wheel and tire applications. It can be used as a replacement valve during motorcycle tire servicing.
Can PVR60 be used on all motorcycles?
No. Motorcycle wheels use different valve configurations. Compatibility should be confirmed according to the wheel valve-hole size, valve shape and installation requirements.
Should I replace the valve when changing a motorcycle tire?
Replacing an old valve during tire replacement is generally recommended, particularly when the existing valve shows signs of aging, damage or wear.
Is PVR60 suitable for wholesale?
Yes. PVR60 can be supplied for motorcycle parts wholesalers, tire distributors, repair shops and aftermarket suppliers. Packaging options can be discussed for bulk orders.
